Tiny2416 | S3C2416 ARM9 Board

FriendlyARM Tiny 2416 Stamp Module with 400 MHz Samsung S3C2416 ARM9 processor.

Specification: Stamp Module

  • Dimension: 64 x 50 mm
  • CPU: 400 MHz Samsung S3C2416 ARM926EJ (max freq. 533 MHz)
  • RAM: 128 MB, 16 bit Bus
  • Flash: up to 1GB NAND Flash
  • Serial, SPI, I2C, I2S, SD/MMC, USB, LCD Interface
  • Analog Input and Output
  • User Outputs: 4x LEDs
  • Expansion headers (2.0 mm)
  • Debug: 10 pin JTAG (2.0 mm)
  • Power: 2-6V
  • OS Support
    • Windows CE 6
    • Linux

Specification: SDK-Board

  • Dimension: 180 x 130 mm
  • EEPROM: 256 Byte (I2C)
  • Ext. Memory: SD-Card socket
  • Serial Ports: DB9 connector (RS232), total: 4x serial port connectors
  • USB: USB-A Host 1.1, miniUSB Slave/OTG 2.0
  • Audio Output: 3.5 mm stereo jack
  • Audio Input: 3.5mm jack + Condenser microphone
  • Ethernet: RJ-45 10/100M (DM9000)
  • RTC: Real Time Clock with battery (CR1220)
  • Beeper: PWM buzzer
  • Camera: 20 pin Camera interface (2.0 mm)
  • LCD: 40 pin + 45 pin connector for FriendlyARM Displays and VGA Board
  • User Inputs: 4x push buttons and 1x A/D pot
  • Expansion headers (2.0 mm)
  • Power: regulated 5V

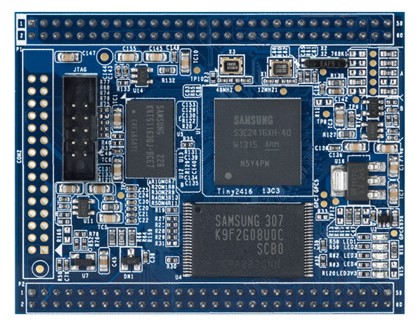

Stamp Module

Tiny2416

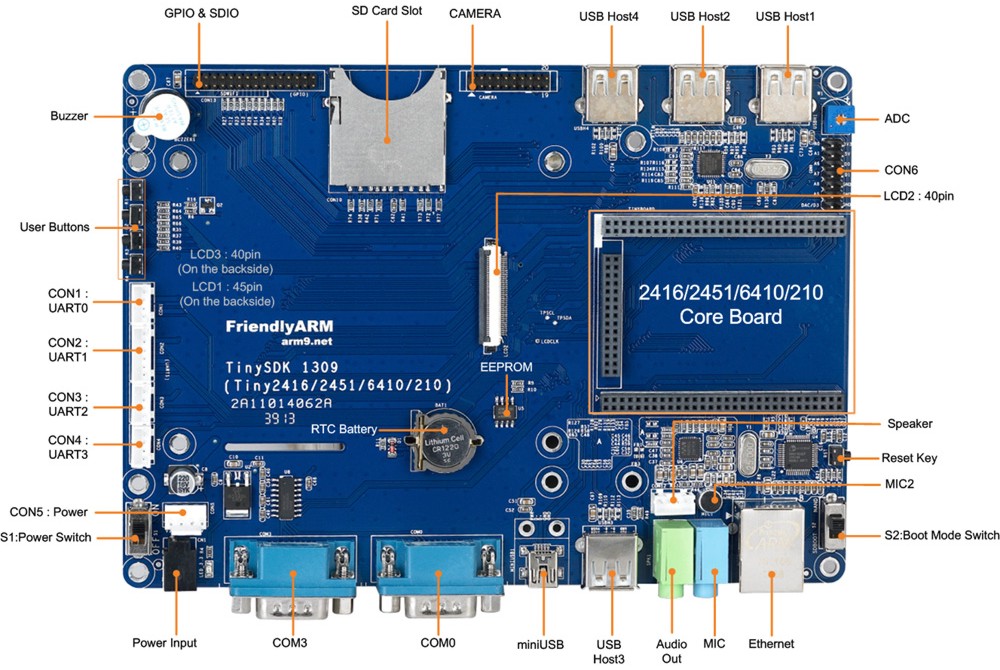

SDK-Board

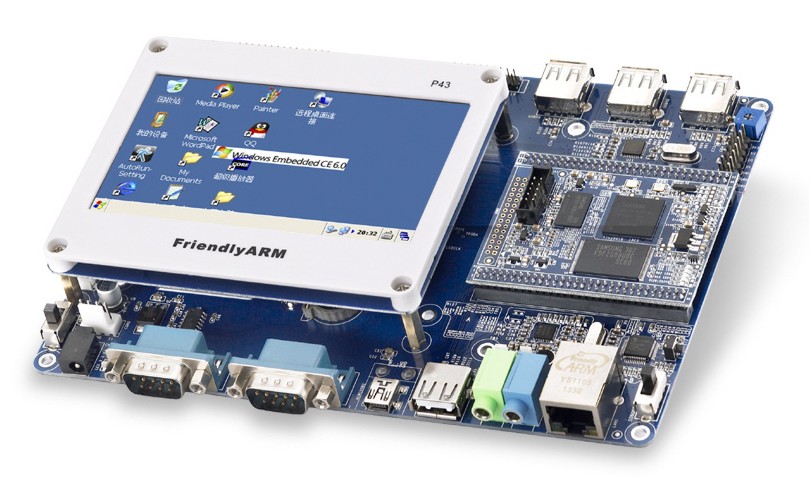

TinySDK Overview TinySDK with 4.3" Display and Touch Panel
