Mini2440 ARM9 Board

FriendlyARM Mini 2440 SBC (Single-Board Computer) with 400 MHz Samsung S3C2440A ARM9 processor. The board measures 10 cm x 10 cm, ideal for learning about ARM systems or integrating into numerous products.

Specification

  • Dimension: 100 x 100 mm
  • CPU: 400 MHz Samsung S3C2440A ARM920T (Max freq. 533 MHz)
  • RAM: 64 MB SDRAM, 32 bit 100 MHz Bus
  • Flash: 64 MB / 128 MB / 256 MB NAND Flash and 2 MB NOR Flash with BIOS
  • EEPROM: 1024 Byte 24C08 (I2C)
  • Ext. Memory: SD-Card socket
  • Serial Ports: 1x DB9 connector (RS232), total: 3x serial ports on the PCB
  • USB: 1x USB-A Host, 1x USB-B Device
  • Audio Output: 3.5 mm stereo jack
  • Audio Input: on PCB + condenser microphone
  • Ethernet: RJ-45 10/100M (DM9000)
  • RTC: Real Time Clock with battery
  • Beeper: PWM buzzer
  • Camera: 20 pin Camera interface
  • LCD Interface
    • STN Displays:
      • 4 bit dual scan, 4 bit single scan or 8 bit single scan display type
      • monochrome, 4 gray levels, 16 gray levels, 256 colors or 4096 colors
      • Max: 1024x768, 4096 colors
    • TFT Displays:
      • 1, 2, 4 or 8 bpp palletized color displays
      • 16 or 24 bpp non-palletized true-color displays
      • Max: 1024x768, 64k colors
    • Connector for FriendlyARM Displays (3,5" and 7") and VGA Board
  • Touch Panel: 4 wire resistive
  • User Inputs: 6x push buttons and 1x A/D pot
  • User Outputs: 4x LEDs
  • Expansion: 40 pin System Bus, 34 pin GPIO (2.0mm)
  • Debug: 10 pin JTAG (2.0mm)
  • Power: 5V connector, power switch and LED
  • Power Supply: regulated 5V 1A
  • OS Support
    • Android
    • Linux 2.6
    • Windows CE 5 and 6

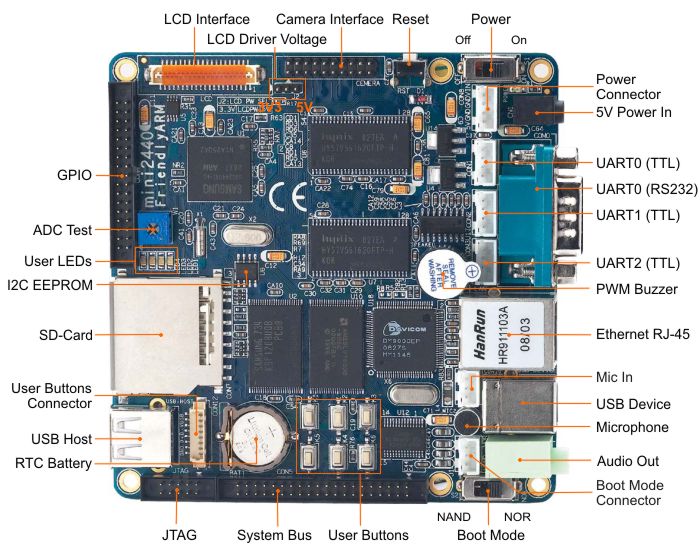

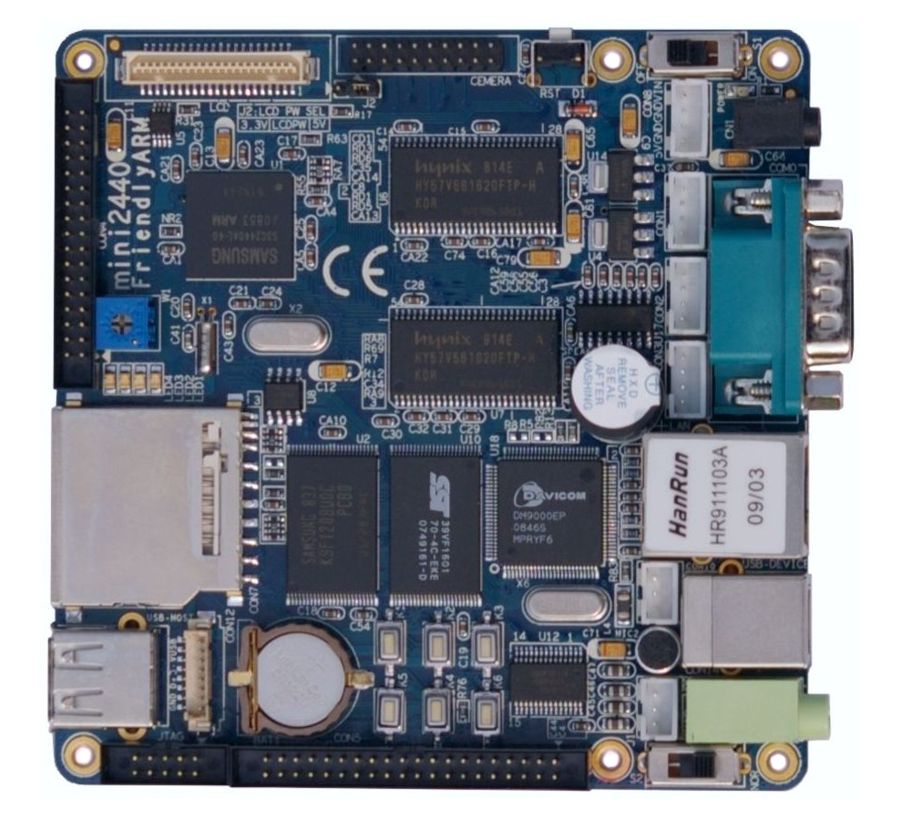

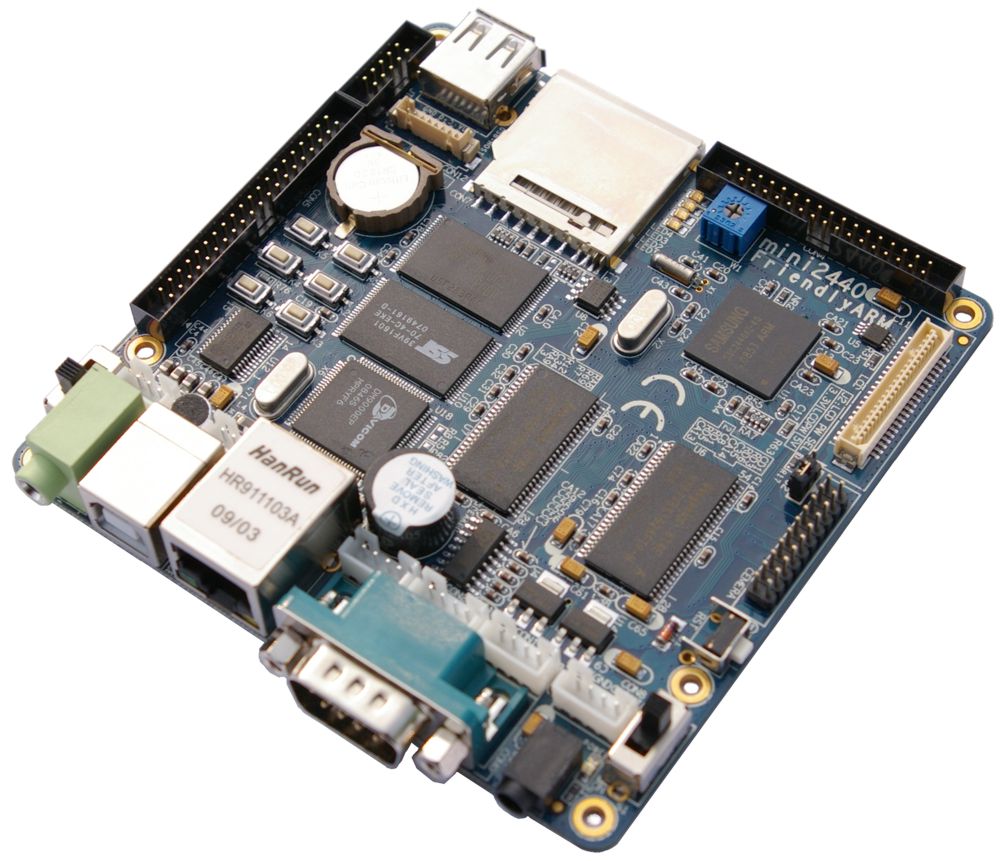

Board

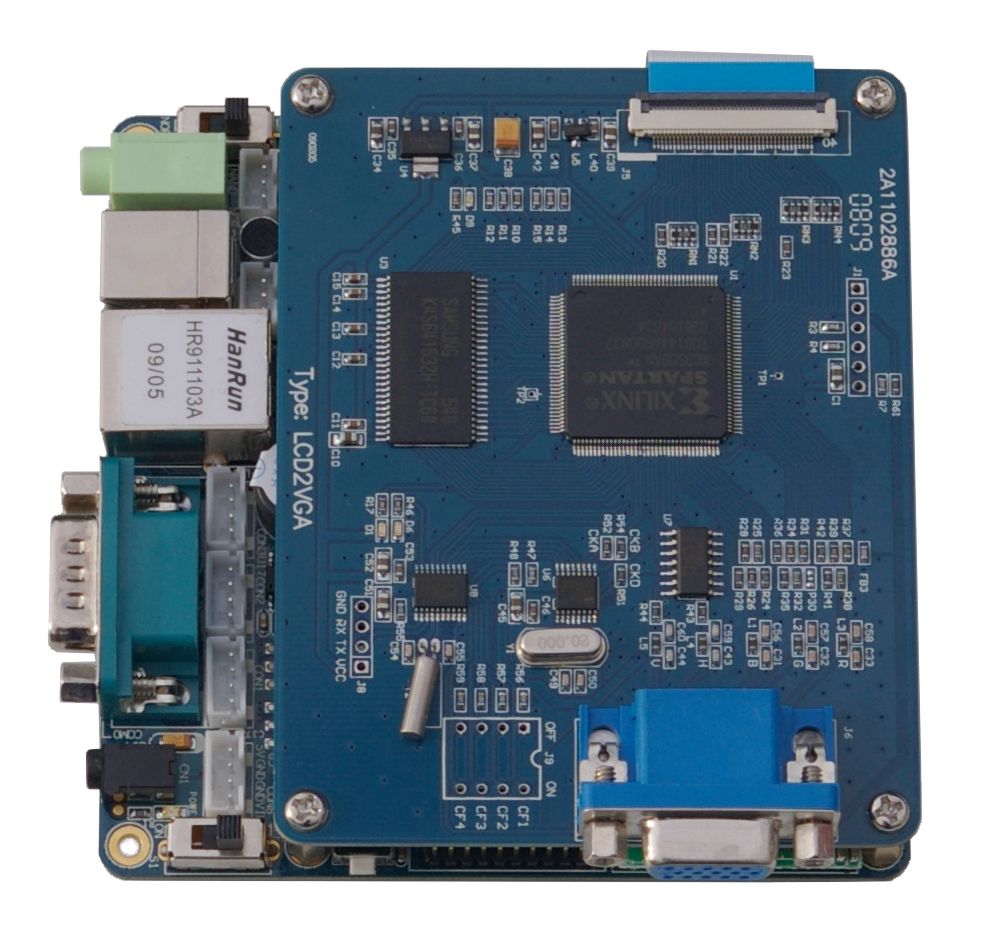

Mini2440 Mini2440 Mini2440 with 3.5" Display and Touch Panel Mini2440 with 7.0" Display and Touch Panel Mini2440 with VGA Board
