Micro2440 | S3C2440 ARM9 Stamp Module

FriendlyARM Micro 2440 Stamp Module with 400 MHz Samsung S3C2440 ARM9 processor.

Micro2440 Schematics

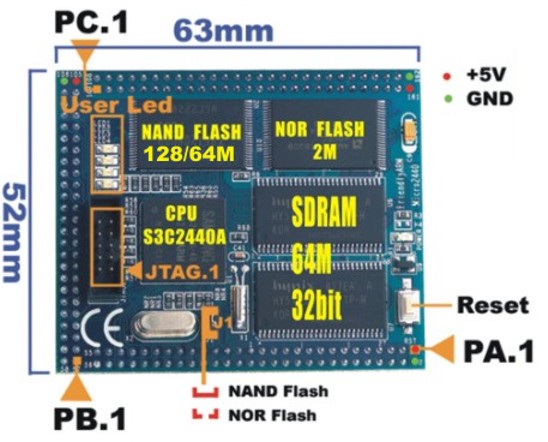

Specification: Stamp Module

• Dimension: 63 x 52 mm
• CPU: 400 MHz Samsung S3C2440A ARM920T (max freq. 533 MHz)
• RAM: 64 MB SDRAM, 32 bit Bus
• Flash: 64 MB / 128 MB / 256 MB / 1GB NAND Flash and 2 MB NOR Flash with BIOS
• LCD Interface
  • STN Displays:
  • Monochrome, 4 gray levels, 16 gray levels, 256 colors, 4096 colors
  • Max: 1024x768
  • TFT Displays:
  • Monochrome, 4 gray levels, 16 gray levels, 256 colors, 64k colors, true color
  • Max: 1024x768
• Touch Panel: 4 wire resistive
• User Outputs: 4x LEDs
• Expansion headers (2.0 mm)
• Debug: 10 pin JTAG (2.0 mm)
• OS Support
  • Windows CE 5 and 6
  • Linux 2.6
  • Android

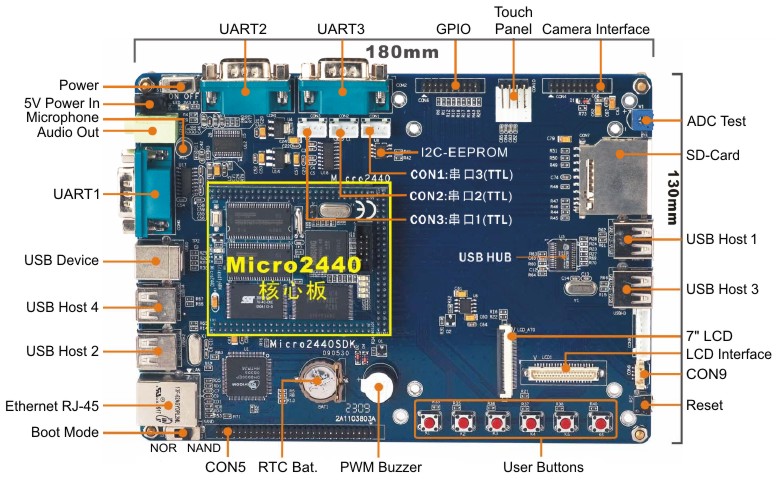

Specification: SDK-Board

• Dimension: 180 x 130 mm
• EEPROM: 1024 Byte (I2C)
• Ext. Memory: SD-Card socket
• Serial Ports: 3x DB9 connector (RS232)
• USB: 4x USB-A Host, 1x USB-B Device
• Audio Output: 3.5 mm stereo jack
• Audio Input: 3.5mm jack (mono) + Condenser microphone
• Ethernet: RJ-45 10/100M (DM9000)
• RTC: Real Time Clock with battery
• Beeper: PWM buzzer
• Camera: 20 pin Camera interface (2.0 mm)

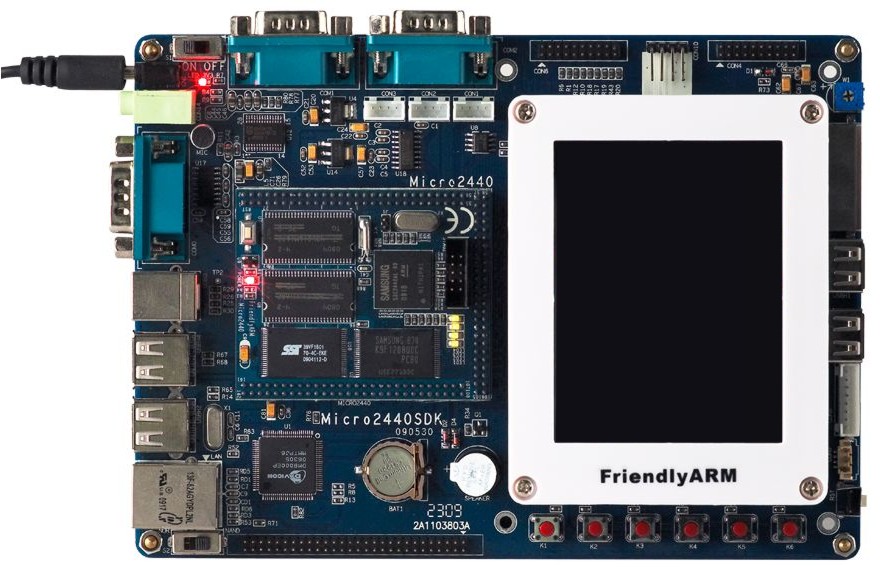

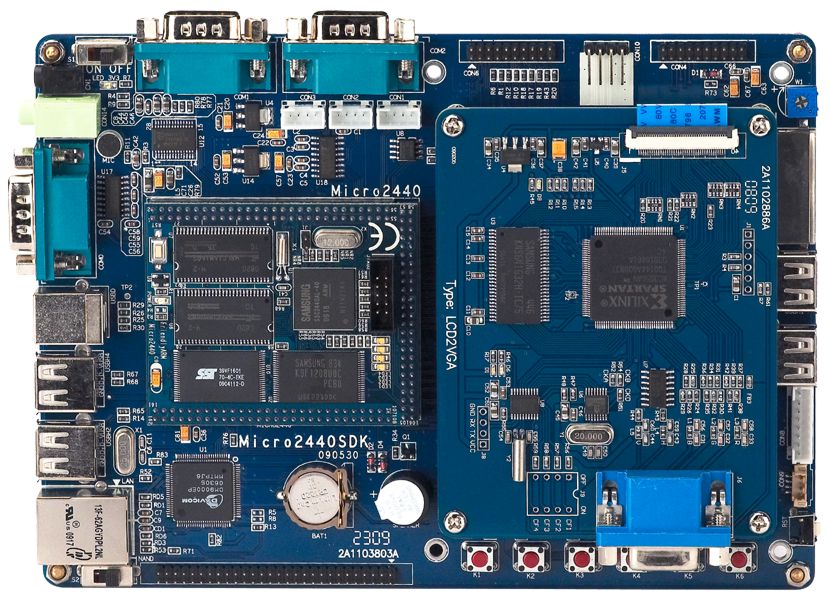

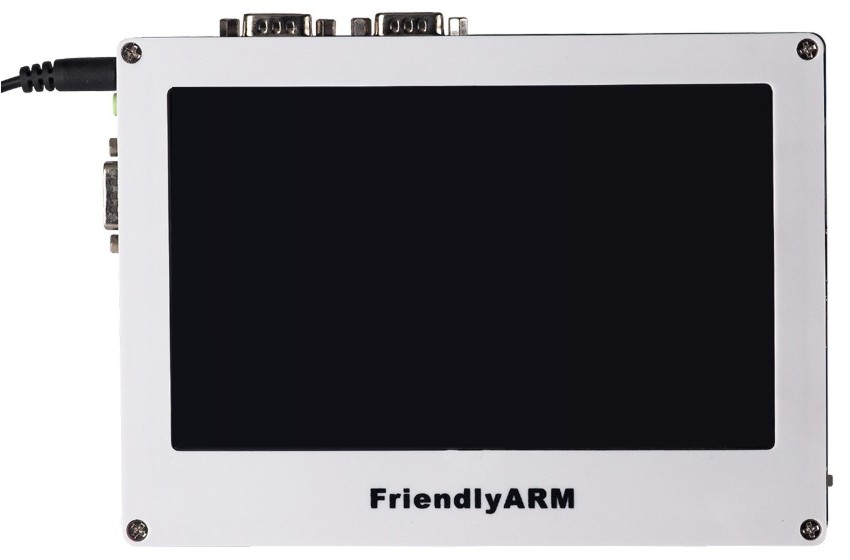

• LCD: 41 pin connector for FriendlyARM Displays (3.5" and 7") and VGA Board
• Touch Panel: 4 pin
• User Inputs: 6x push buttons and 1x A/D pot
• Expansion headers (2.0 mm)
• Power: 5V connector, power switch and LED
• Power Supply: regulated 5V

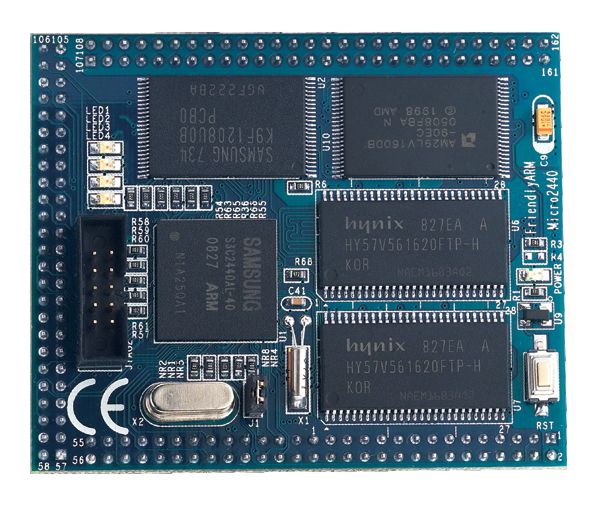

Stamp Module

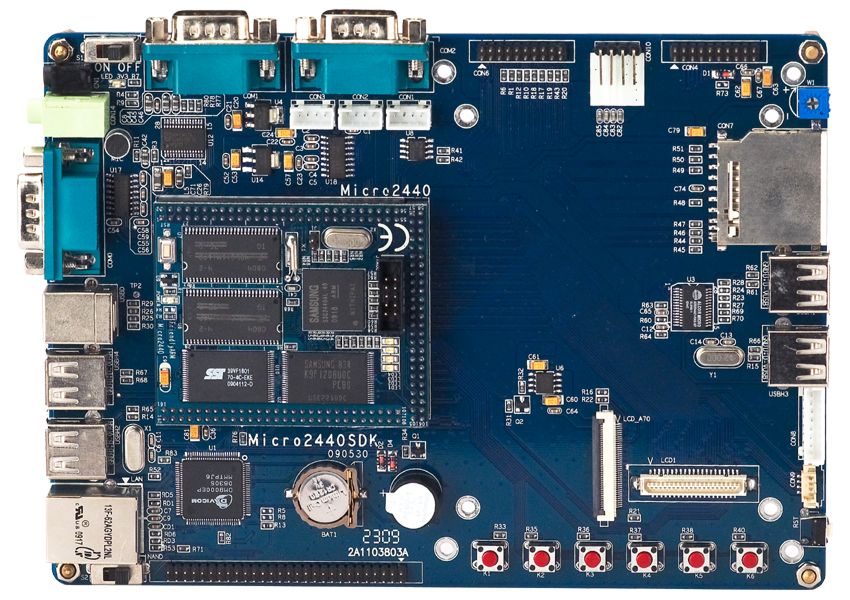

SDK-Board + Stamp Module
