Accessories

Accessories for the FriendlyARM boards and modules.

3.5" Display with TouchPanel

  • Outer Dimension: 110 x 78 mm
  • Display-Panel: N35 / T35 / X35 / W35, Datasheet

4.3" Display with TouchPanel

  • Outer Dimension: 110 x 88 mm
  • Display-Panel: N43 / P43, Datasheet

5" Display with TouchPanel

  • Outer Dimension: 130 x 93 mm
  • Display-Panel: W50, Datasheet

7" Display with TouchPanel

  • Outer Dimension: 180 x 130 mm
  • Display-Panel: A70 / S70, Datasheet

8" Display with TouchPanel

  • Outer Dimension: 202 x 162 mm
  • Display-Panel: L80, Datasheet

10.1" Display with TouchPanel

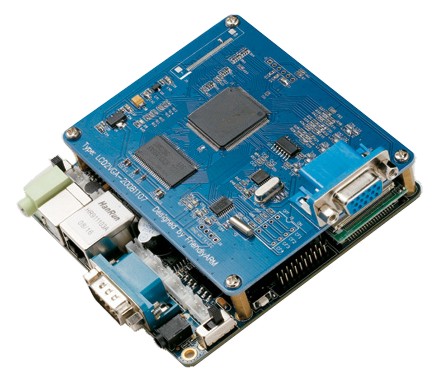

LCD2VGA + EZVGA Adapter

  • Resolution: 1024x768 70Hz (VGA)
LCD2VGA

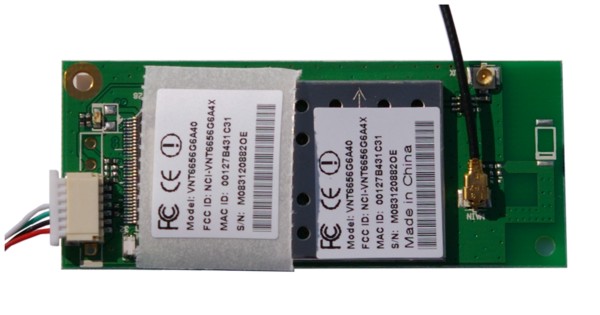

USB WiFi Module

  • WLAN: IEEE 802.11b/g
  • Data Rate: Up to 54 Mbps
  • Chipset: VIA VT6656
 USB WiFi

SD WiFi Module

  • WLAN: IEEE 802.11b/g
  • Chipset: Marvell 8686
 SD WiFi

CAM130 CMOS-Camera Module

  • Pixel: 1.3 megapixel
  • Resolution: 640 x 480 / 1280 x 1024
  • Color: 24 bit
  • Transmission rate: 30/15 fps
  • Chip: OV9650
 CAM130 Camera

UC001 USB-Camera Module

  • USB 2.0:
  • Dimension: 60 x 8 mm
 UC001 Camera

Serial Adapter

  • TTL level to RS232 level converter
 Serial Adapter

Power Supply

  • Output: 5V (regulated)
  • DC-Plug: 1.35mm inner x 3.5mm outer diameter

Connectors

  • COM-Port: JST PHR-4
